CBi Electric
CBi Astute Smart Isolator
CBi Astute Smart Isolator
Regular price
R 649.00
Regular price
Sale price
R 649.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability

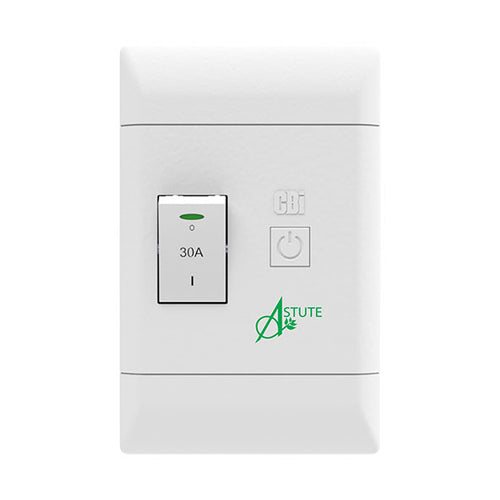

The Astute Smart Isolator is an energy monitoring, scheduling and control switch with load management and automation capability. The CBI Home App enables the user to configure the ASI to react to current, voltage, time, power and many other variables or a combination thereof. The ASI can be used to remotely control geysers, air conditioners, etc.
Product Video
Product Features
- Wi-Fi enabled (2.4 GHz only)
- Compact size
- Energy monitoring
- Energy control
- Application controlled (CBI Home App)
- Custom automation and custom scenarios
- Multiple ON / OFF programs
- Service life: 20 000 operations at full load
- Manual ON / OFF switch (Power Button)
- Switched Live contact reduces wiring
- Scheduling function - day / week / hour / minute
- Return to last status options
- No hub required
- Requires 2.4GHz Wi-Fi with internet connection
- Requires a smartphone or tablet
Application
- Automation and IoT
- Residential - Geysers / Air conditioners
- Commercial - Air conditioners / Illuminated signs / Hand driers
- Light Industrial
- Home / office automation
- And more
- Air Conditioners
- Illuminated signs
- Hand dryers
Safety Features
- IEC 60947-3
- ICASA
Technical Specifications
Colour: | White |
Finish: | Gloss |
Material: | Plastic |
Mounting Type: | Surface or Wall Mount |
Switch Type: | Isolator and Power Switches on the unit |
Number of Switches: | 1 x Switch |
Time Range: | Week / Day / Minute |
Current: | 30A Resistive / 10A Inductive |
Voltage: | 230VAC |
Frequency: | 50 Hz |
Height: | 126.3mm |
Width: | 80.2mm |
Length: | 126.3mm |
Depth: | 30mm |
Size: | 4 x 2 |
Cable / Wire Size (sq.): | 6mm² |
Operating Temperature: | -20°C to +55°C |
IP Rating: | IP40 |
Technical Documents
Technical Document: | Download |
Product Manual: | Download |
