CBi Electric

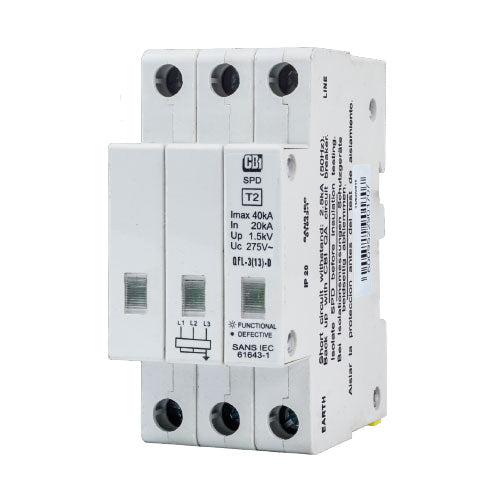

CBi QFL-3(13)D DIN Rail Surge Protector with Indication 3P 275V 10kA
CBi QFL-3(13)D DIN Rail Surge Protector with Indication 3P 275V 10kA
Regular price
R 929.00
Regular price
Sale price
R 929.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Product Features
- LED indication of the SPD's condition - while ON, the SPD is functional, if OFF and the mains power is still available, then the SPD is no longer functional and should be replaces
- Thermal disconnect device (prevents potential thermal runaway problems)
- One port SPD (no series impedance)
- Required to be backed up by a QA MCB
Safety Features
- Required to be backed up by a QA MCB
- Surge Protection Devices should be installed by a trained professional to prevent any damages caused by incorrect installation
- Class II Surge Protection Devices are only to be used where items are not subjected to direct lightning strikes and the voltage / current surges are reduced in magnitude
Technical Specifications
Colour: | Grey |
Material: | Copper and polycarbonate |
Mounting Type: | DIN Rail |
Poles: | 3 Poles |
Short Circuit Withstand: | 2.5kA |
Escutcheon: | 45mm |
Discharge Current (Imax): | 10kA |
Discharge Current (Inom): | 5kA |
kA Rating: | 10kA |
Voltage: | 275V AC |
Width: | 39mm |
Length: | 84.8mm |
Depth: | 66mm |
Class of Surge Protection Device: | II |
IP Rating: | IP20 |
Weight: | 426g |
Technical Documents
Technical Document: | Download |
