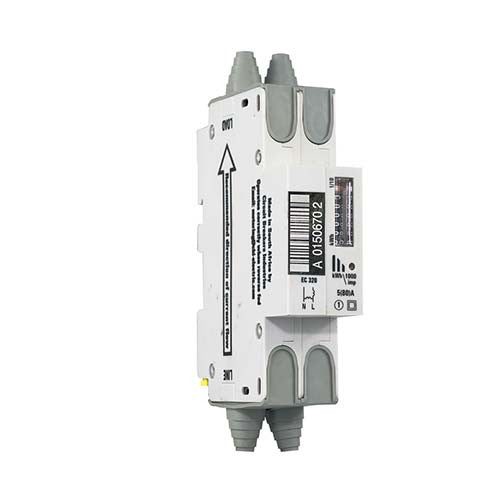

CBi Ecolec Rail Mount Meter 45mm 2 Module 5(80)A

sku: EC320CD
Product Description
  • IEC 61036 class 1 electricity meters
  • Single phase alternatives
  • Fits all Mini and DIN Rail Distribution boards
  • 7 digits indication of energy consumed to 1 / 10 kWh
  • Dual colour lamp shows rate of consumption and/or confirms presence of incoming supply
  • Supplied with anti-tamper terminal protection plugs

Colour: Grey
Material: Plastic
Mounting Type: DIN Rail
Measurement accuracy: Class 1
Escutcheon: 45mm
Current Operating Range: 0.015 - 125A
Voltage: 230V AC
Frequency: 50/60hZ
Phase: 1 + Neutral
Height: 107mm
Width: 26mm
Depth: 66mm
Operating Temperature: -40 °C to +75 °C
Weight: 158.5g
R 1,154.00 incl. VAT incl. VAT
